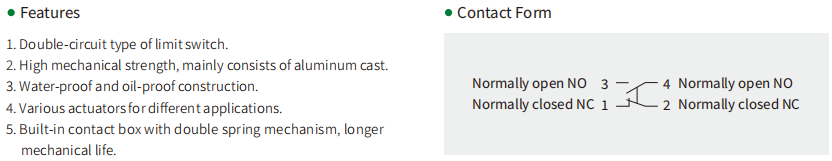

Features
1. Double-circuit type of limit switch.
2. High mechanical strength, mainly consists of aluminum cast.
3. Water-proof and oil-proof construction.
4. Various actuators for different applications.
5. Built-in contact box with double spring mechanism, longer
mechanical life.


Notes:

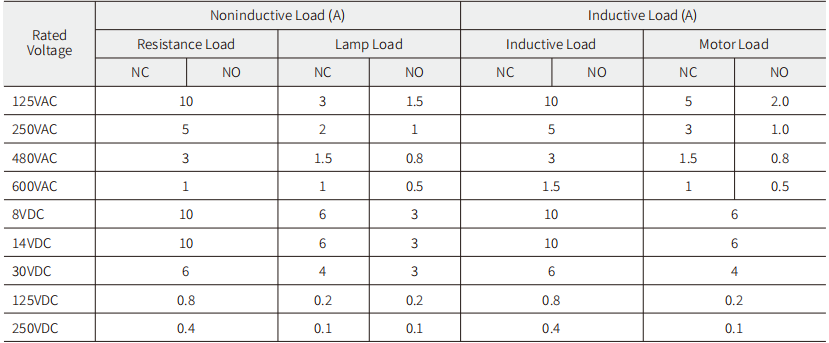

1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.

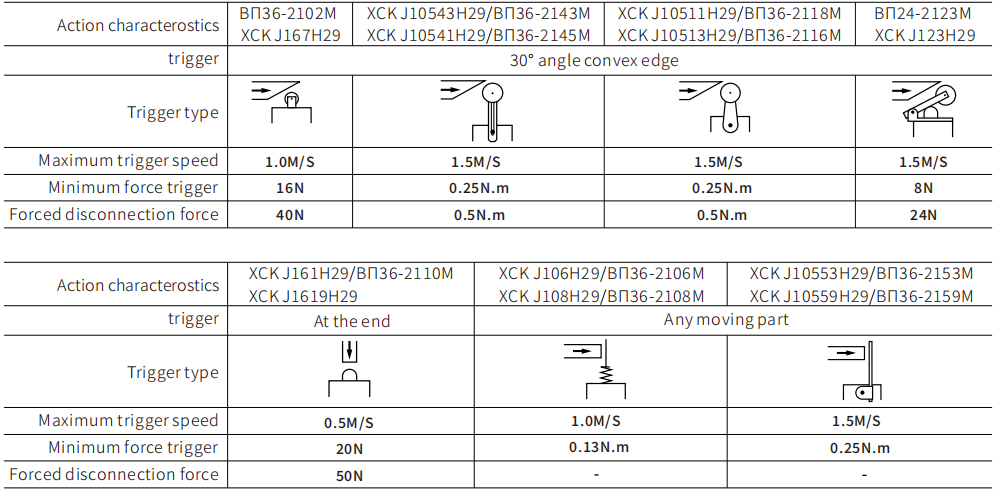

Operating Characteristics
Quick-action type (1NC/1NO)

Appearance and Dimension
